Liquid Cooled Plate for AI Data Center Server Liquid Cooling

Mindestbestellmenge:	5 STÜCK
Preis:	$100-$150
Standardverpackung:	Speziell für die Ausfuhr gefertigte Plyschnittholzboxen
Lieferfrist:	35 Tage
Zahlungsmethode:	T/T
Lieferkapazität:	3000 Stück/Tag

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort

China, Stadt Suquan

Markenname

Trumony

Zertifizierung

ISO9001,IATF

Modellnummer

Trumony-04241

Produktionsprozess:

Löten, Extrudieren, Stanzen, CNC,

Material:

3003,4043

Größe:

Gemäß der Anforderung/dem Design des Kunden

Anwendung:

Lithium-Akku

Garantie:

1 Jahr

Farbe:

Grau/Schwarz

Hervorheben:

liquid cooled plate for AI servers

data center liquid cooling plate

server liquid cold plate with warranty

Produktbeschreibung

Products introduction:

This high-performance liquid cooled plate is professionally engineered for new energy thermal management, widely applicable to EV battery packs, BESS energy storage systems, AI data centers and high heat flux density cooling scenarios.

Made of high-quality aluminum alloy and manufactured by mature vacuum brazing technology, the liquid cooled plate features excellent thermal conductivity, stable structural strength and outstanding leakage resistance. Optimized internal flow channel design ensures uniform heat exchange, effectively eliminates hot spots, balances overall temperature difference and greatly improves cooling efficiency.

As a reliable new liquid cooling solution, our liquid cooled plate supports fully customized size, flow channel structure and interface specifications to meet diverse installation and system matching requirements. Strict pressure testing and quality inspection guarantee long-term continuous and stable operation in harsh working conditions, helping customers enhance equipment safety, extend service life and reduce overall operating costs.

Product Parameter

Category	Details
Material Selection	Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used)
Key Processes	1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination
Structural Design	1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm
Performance	1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate
Cost	Typically RMB 27~35/kg, with relatively high tooling cost
Weight	Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time	High design flexibility and short prototyping cycle
Maturity	Most widely adopted process, with >90% market share

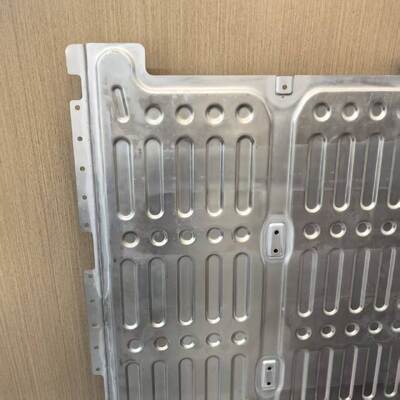

Liquid Cooled Plate for AI Data Center Server Liquid Cooling 0

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 18 years history in this industry.

Q: What is your terms of payment ?

A: Normally 100% T/T In advance,But this is something that can be negotiated.

Q: How long does it take for samples and mass production?

A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
